How Does Metal 3D Printing Work?
Metal 3D printing, also known as metal additive manufacturing, is rapidly transforming industries in Singapore and globally. From aerospace to medical devices, the ability to produce complex, highly optimized metal parts is unlocking new possibilities. But how does metal 3D printing work? In this guide, we’ll walk through the core mechanisms, benefits, real-life applications, and market pricing, helping you understand why The Monster Builder is your go-to partner.
What Is Metal 3D Printing?
Metal 3D printing is an additive manufacturing process where metal parts are built layer by layer directly from a digital design (CAD file). Unlike traditional subtractive techniques (like CNC machining), additive manufacturing adds material, minimizing waste and enabling geometries that would be difficult or impossible to manufacture otherwise.
If you’re wondering whether 3D-printed components can match the durability of traditional metal parts, you can read our detailed breakdown on how strong 3d printing parts really are.
How Does Metal 3D Printing Work?
There are several main technologies for how metal 3D printing works. Each has its own advantages, trade-offs, and typical applications.
1. Powder Bed Fusion (PBF) — SLM / DMLS

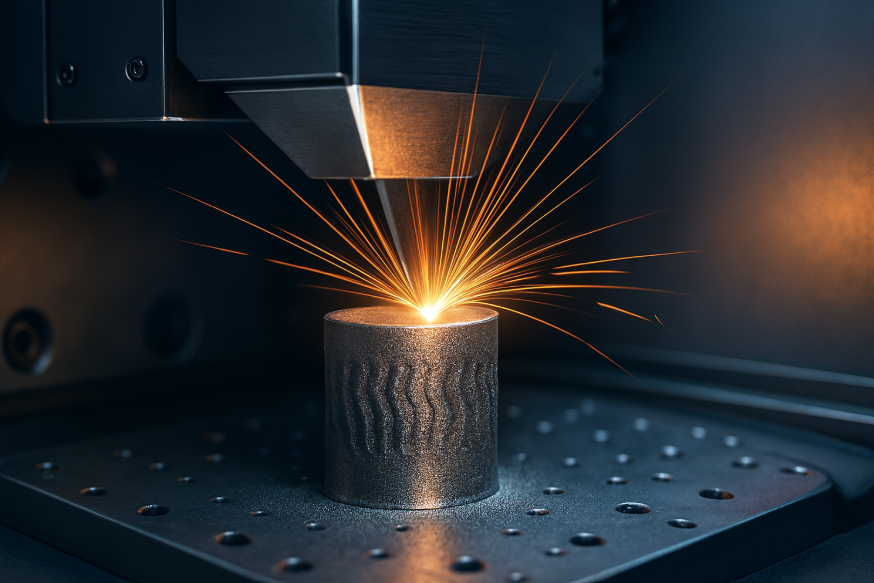

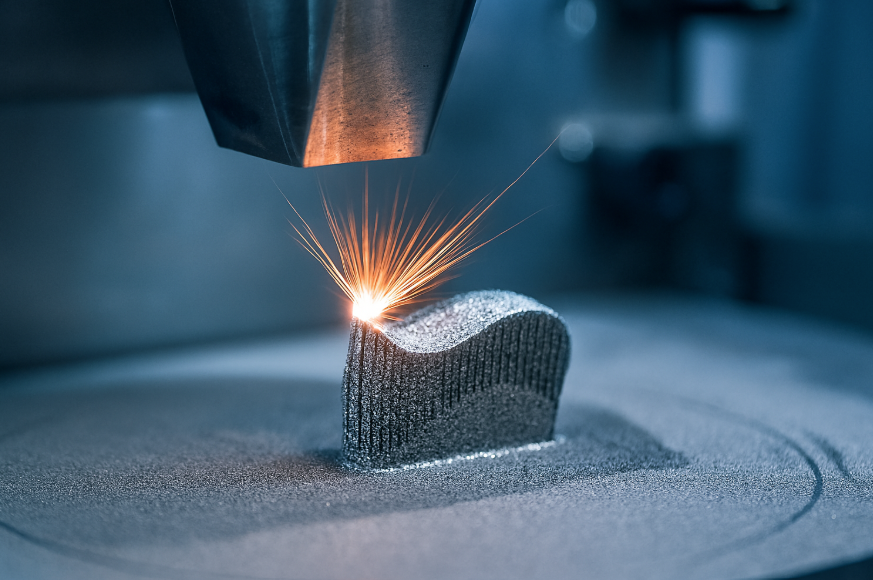

Selective Laser Melting (SLM) / Direct Metal Laser Sintering (DMLS): These are perhaps the most common metal 3D printing technologies. A thin layer of metal powder is spread across a build platform, and a high-power laser selectively melts (SLM) or sinters (DMLS) the powder to fuse particles into a solid structure. After one layer solidifies, the platform lowers, another powder layer is applied, and the process repeats. Over many cycles, the full part emerges. Once printing is done, parts often go through post-processing, such as heat treatment or stress relief.
- Pros: Very high mechanical strength, good density, complex geometries.
- Cons: Expensive machines, expensive powder, safety / handling concerns.
2. Electron Beam Melting (EBM)
In EBM (or electron-beam additive manufacturing), a beam of electrons in a vacuum fuses metal powder. This technique can produce parts with excellent material properties and is suited to high-performance metals like titanium.
3. Binder Jetting
A print head “jets” liquid binder onto a bed of metal powder, binding the particles in the regions defined by the digital model. After printing, the “green part” (which is fragile) must be cleaned, de-bound (remove binder), and sintered or infiltrated with lower-melting metals. Because binder jetting doesn’t require high-power lasers for the build phase, it’s relatively faster and more scalable for batch production.
4. Directed Energy Deposition (DED) / Wire Arc Additive Manufacturing (WAAM)
In DED, metal is supplied either as powder or wire, and a focused energy source (laser, electron beam, or arc) melts the material as it’s deposited.
WAAM is a specific DED variant that uses an electric arc to melt feeding wire. It’s ideal for producing large structural parts, though surface finish and precision may need post-processing.
5. Ultrasonic Additive Manufacturing (UAM)
This is a solid-state process: thin metal foils are joined together via ultrasonic vibrations under pressure. Since melting is not involved, UAM enables embedding of other materials and can join dissimilar metals.
For smaller projects such as character models, prototypes, or small decorative pieces, you can also explore how much it costs to 3D print a figure to get a better idea of budget planning.
Benefits of Metal 3D Printing
Understanding how metal 3D printing works is one thing but why choose it? Here are the key benefits and applications, particularly relevant in Singapore’s manufacturing landscape.
Design Freedom
Metal 3D printing enables complex geometries (e.g., internal lattice structures, conformal cooling channels) that are difficult or impossible with conventional manufacturing.
Material Efficiency & Waste Reduction
Since material is added layer by layer, unused powder can often be recycled (depending on technology), reducing waste versus subtractive machining.
Rapid Prototyping & Shorter Time-to-Market
Engineers can iterate designs quickly, cushioning innovation cycles for startups or R&D divisions.
Part Consolidation
Multiple components can be printed as a single, integrated piece, reducing assembly complexity, potential failure points, and lead time.
Customisation & Low Volumes
Ideal for bespoke / low-volume parts (e.g., medical implants, aerospace brackets), where tooling costs for mass production would be prohibitive.
Advanced Material Properties
New research, including by NTU Singapore, allows regions within a single printed part to have different mechanical properties. For example, some zones can be printed to be tougher, while others emphasise conductivity or corrosion resistance.
If you’re new to manufacturing and want a clearer explanation of industry terminology, check out our guide on 3d prinitng vs additive manufacturing to understand whether there’s any real difference between the two.
Applications
Here are some concrete examples of how metal 3D printing is used especially relevant for Singapore-based industries:
- Aerospace & Defense: Jet engine components, lightweight brackets, complex structural parts. According to market data, aerospace remains a dominant application segment.
- Automotive: Custom tooling, heat exchangers, turbine-inspired components.
- Medical / Dental: Patient-specific implants, surgical tools, custom prosthetics.
- Industrial Tooling & Fixtures: Jigs, fixtures, molds with conformal cooling, reducing cycle times and improving part quality.
- Research & Materials Engineering: NTU’s work on programmable microstructures shows potential to produce high-performance metal parts with tunable strength or conductivity.
Metal 3D Printing Market & Pricing
The global metal 3D printing market is projected to reach USD 12.04 billion in 2025, which is about SGD 16.25 billion. Standard metal powders like stainless steel or aluminium, cost around USD 55–USD 135/kg, which is approximately SGD 75–SGD 180 per kg. High-performance metal powders (e.g., titanium alloys) range from USD 270–USD 750/kg, or around SGD 365–SGD 1,015 per kg, depending on purity and alloy.
Choose The Monster Builder for Metal 3D Printing
Metal fabrication and 3D printing technologies continue to play a crucial role in modern manufacturing, each offering unique strengths for different project needs. Traditional metal fabrication remains the best choice for large-scale, high-strength, and cost-efficient metal parts, especially when durability and proven performance are required. On the other hand, metal 3D printing provides unmatched design freedom, allowing complex geometries, lightweight structures, and rapid prototyping that is difficult to achieve through conventional methods.
For non-metal components, FDM printing offers an affordable and rapid solution, making it ideal for early-stage prototypes, functional testing, and low-cost production runs. Meanwhile, SLA printing delivers superior surface finish and high accuracy, making it the preferred option for detailed models, presentation prototypes, and parts requiring smooth, refined aesthetics.
Together, these technologies empower businesses to choose the right manufacturing method based on budget, performance, material, and complexity. Whether you need strong metal parts, lightweight prototypes, or high-precision components, understanding the strengths of each process ensures you achieve the best outcome for your project.
Contact us today to discuss your project, explore the right fabrication or 3D printing solution, and get expert guidance tailored to your manufacturing needs.
